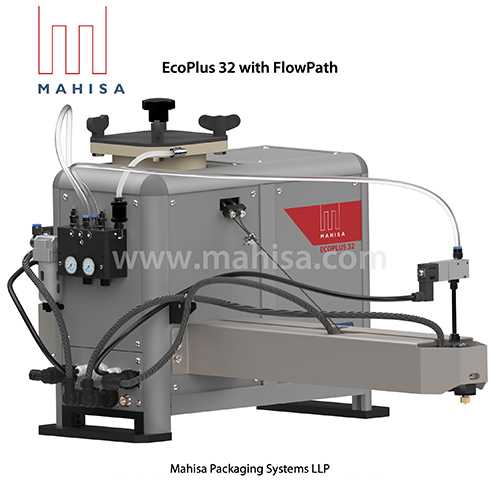

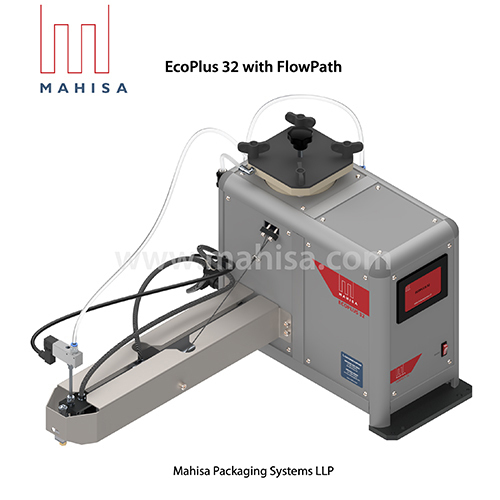

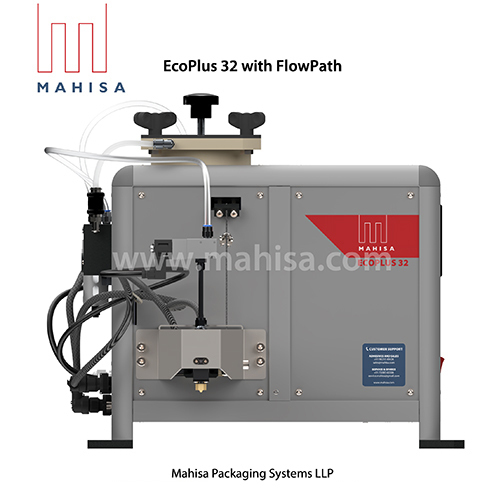

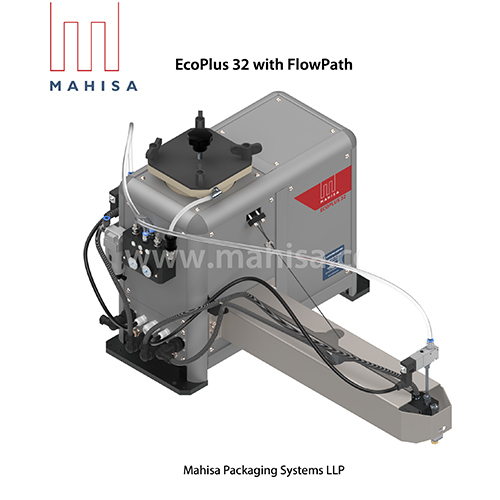

EcoPlus With Flow Path Advanced Glue Dispenser

Name: EcoPlus With Flow Path Advanced Glue Dispenser
Brand: MAHISA PACKAGING SYSTEMS LLP
Price: 310000.0 INR
Availability: InStock

Price 310000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

EcoPlus With Flow Path Advanced Glue Dispenser Specification

General Use
Industrial

Type
Dual Operator

Capacity
4L Tank Ltr

Weight (kg)
30 Kilograms (kg)

Automatic
No

Control System
Manual

Function
Manual System

Working Temperature
20-185 Celsius (oC)

Voltage
230 VAC Volt (v)

Dimension (L*W*H)
580mm x 1000mm x 500mm Millimeter (mm)

Feature
High Efficiency

Warranty
Yes

EcoPlus With Flow Path Advanced Glue Dispenser Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Per Month

Delivery Time
30 Days

Main Domestic Market
All India

About EcoPlus With Flow Path Advanced Glue Dispenser

EcoPlus with FlowPath Advanced Glue Dispenser for Oversized and Complex Assemblies

Product Description:

EcoPlus with FlowPath is built for handling oversized, irregular, or spatially challenging components. The FlowPath mechanism extends the glue heads away from the tank, enabling operators to work directly on large assemblies with greater ease and control. Like all EcoPlus models, it's powered by PLC-based automation, and supports modular head configurations for ultimate adaptability. Built for rugged environments and demanding production layouts, it combines reach, precision, and reliability in a compact, upgrade-ready system.

General Use: Industrial
Dual Operators
Capacity: 4L tank
Output: 750-800 parts per hour per operator
Manual System: Yes
Working Temperature: 20-185 Celsius (oC)
Operating Pressure: 5-6 bar
Tank Pressure: 2-3 bar
Voltage: 230 VAC, 1 phase, 50 Hz. Volt (v)
Dimension (L*W*H): 580mm x 1000mm x 500mm
Safety Features: Temperature, Pressure & Electrical Protection
